AI Smart Glasses w/ ChatGPT & 5MP Camera | Real-Time Translation, Voice Control, 5GHz WiFi, 4Hrs Playtime | HD Shooting

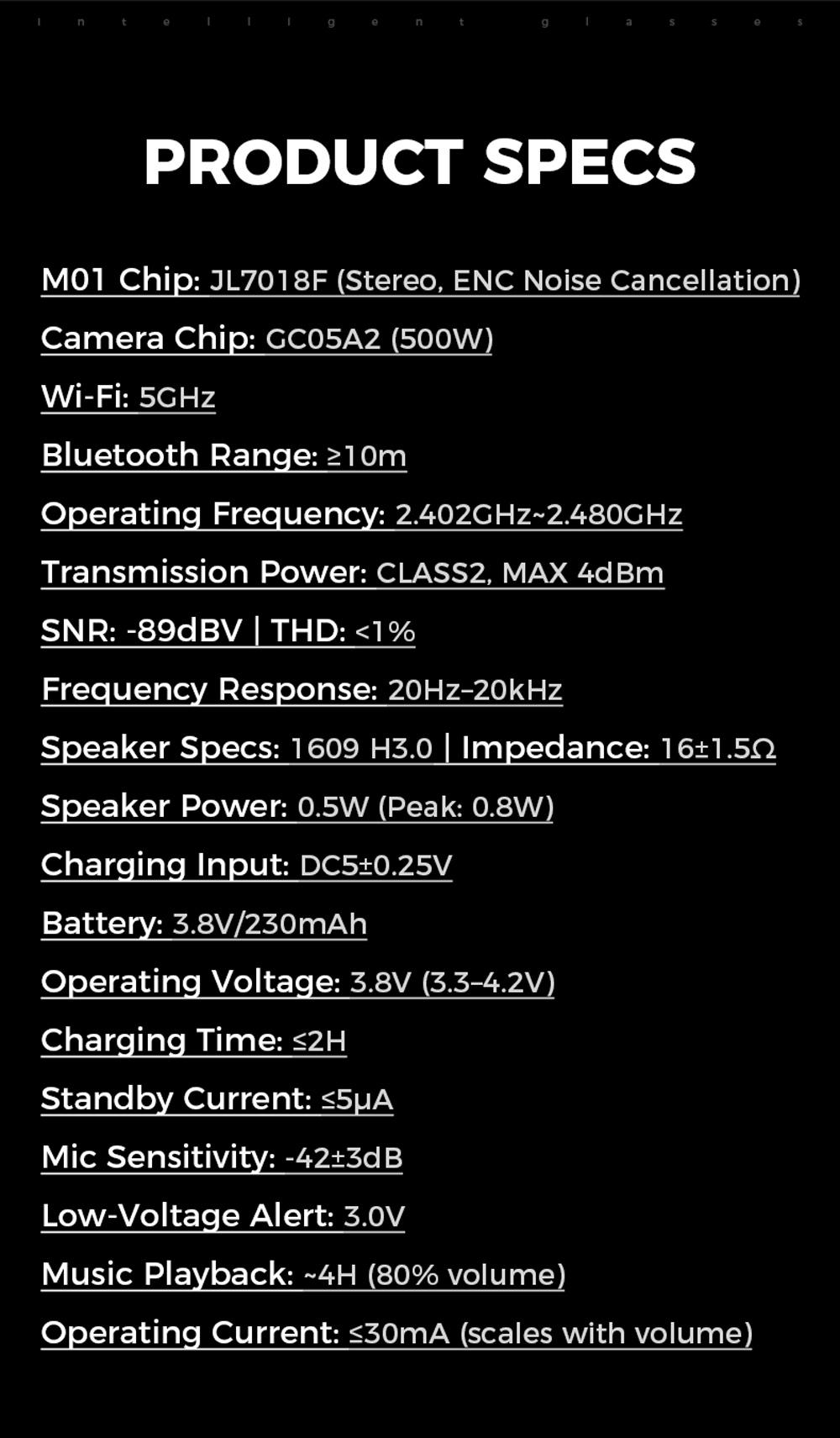

Core Hardware Configuration

●Main Control Chip: JL7018F Stereo ENC Noise Reduction Chip (Professional dual-mic noise cancellation)

●Co-processor: Allwinner V821 Smart Imaging Chip

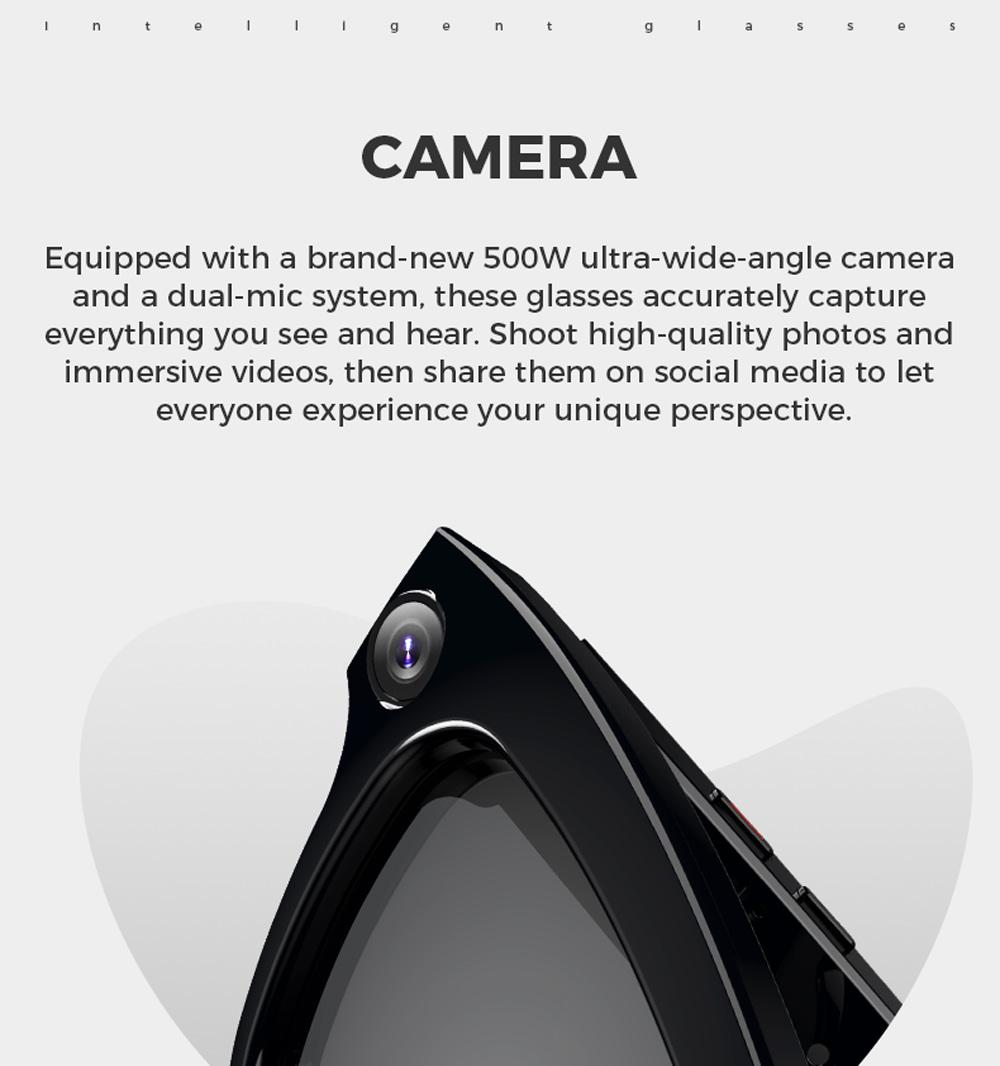

●Camera Module:

◆GC05A2 Sensor | 5MP Resolution

◆EIS (Electronic Image Stabilization) Support

Communication Performance

●Dual-band WiFi: 5GHz/2.4GHz Dual-mode

●Bluetooth 5.0:

◆Transmission Range: ≤10m (Open Space)

◆Operating Frequency: 2.402-2.480GHz

◆TX Power: CLASS 2 (Max 4dBm)

Audio Performance

●Speaker System:

◆16Ω±1.5% High-fidelity Driver | 20Hz-20kHz Frequency Response

◆0.5W Rated Power | 0.8W Instant Peak

◆SNR: -89dBV | THD:

●Microphone Array:

◆-42±3dB Sensitivity

◆Voice Wake-up | AI Environmental Noise Reduction

Power Management

●Battery: 3.8V/230mAh Li-ion

◆Charging: DC 5V±0.25V Input | ≤2H Fast Charging

◆Playback: ~4 Hours (80% Volume)

◆Ultra-low Power: ≤5μA Standby | 3.0V Low-voltage Alert

Smart Features

●AI Interaction:

◆ChatGPT Integration | Real-time Translation

●Imaging:

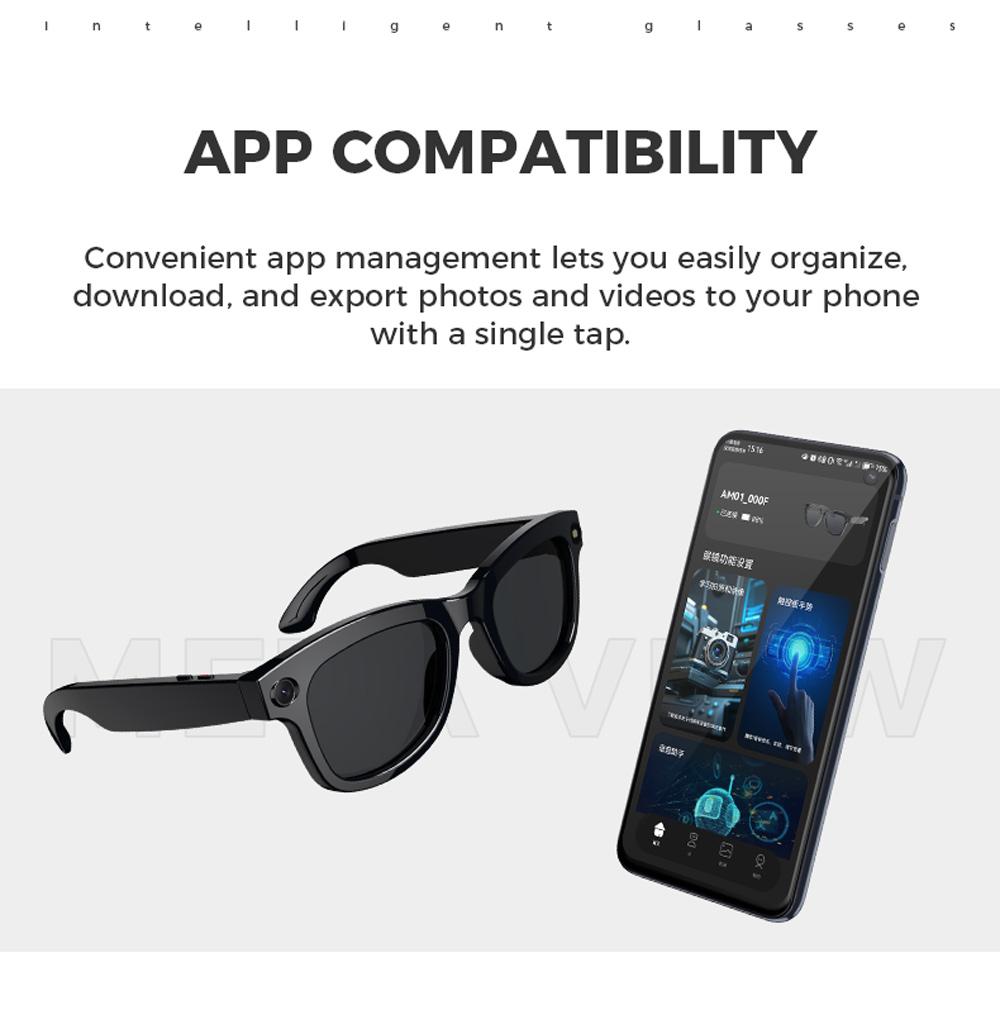

◆Smart Shooting | Photo Preview | WiFi Direct Transfer (Mandatory for preview)

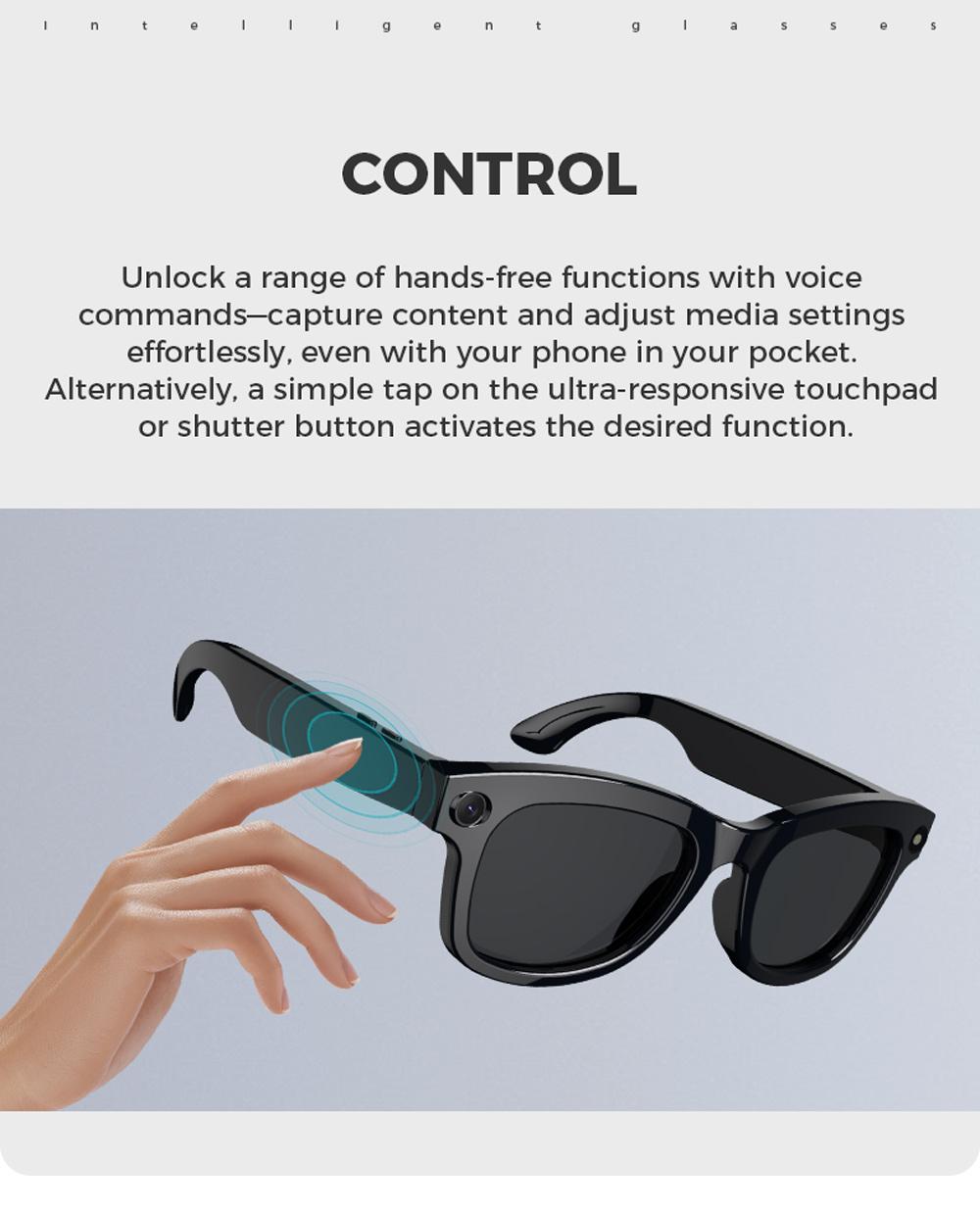

●Controls:

◆Single-touch Operation | Wear Detection | Music Control

●Communication:

◆HD Calling | Auto Answer/End

●Display Limitation:

◆Pure optical lenses (No HUD/AR overlay functionality)

◆All visual feedback via smartphone companion app

Operational Parameters

●Voltage Range: 3.3-4.2V (Nominal 3.8V)

●Current Consumption:

◆Standby: ≤5μA

◆Music Playback: ≤30mA (Volume-dependent)

◆Camera Mode: ≤210mA
